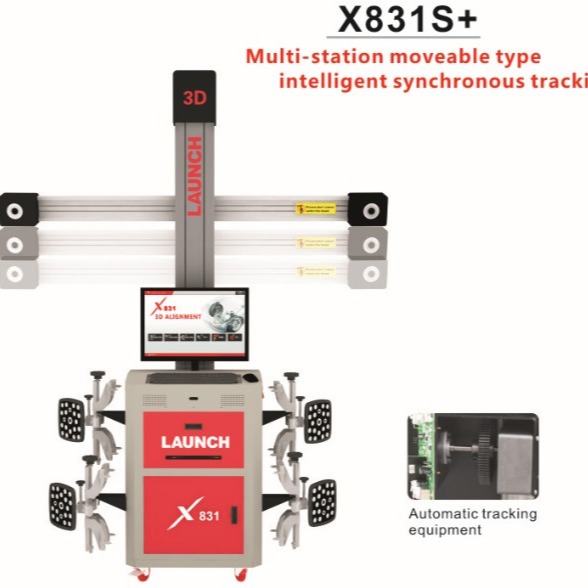

Original LAUNCH X831S+ X831Plus 3D 4-Post Car Alignment Lifts Platform

Original LAUNCH X831S+ X831Plus 3D 4-Post Car Alignment Lifts Platform

Multi-station moveable type intelligent synchronous tracking



LAUNCH X831Plus Features:

Support multi-language UNICODE.
Measurement platform supports: Trench, 4-post lift, big scissor lift.
Full automated synchronous tracking lift function, without human intervention.
Omni-directional, multi-station freely moveable measurement,without dedicated station.
The measurement platform is not required to be horizontal Measurement is possible as long as the target is visible.
Dynamic machinery visual algorithm technology real-time dynamic measurement of the vehicle data
Industry's shorted, small-distance push and roll compensation, without stop halfway.
Detection of tread track, tread track difference wheel base wheel base difference.
Real-time display of kingpin, conventent for the adjustment of suspension bracket data.
Real-time target monitoring.

LAUNCH X831Plus Advantages



Intelligent tracking

Using electrically controlled lifting column, the camera automatically identifies and tracks the target, without human intervention.

Multi-station moveable

Omni-directional,freely moveable measurement, no need of dedicated station,multi-purpose, with little space occupied.

Installation posision

Distance from the post to the lift: 2000-2400mm

Vehicle-pushing measurement

Industry 's shorted, push and roll compensation, without stop halfway, fast and effortless, not affected by the height of the turntable and the lift.

What do you buy LAUNCH X831Plus for?



Packing List

1set X LAUNCH X831S+ X831Plus 3D 4-Post Car Alignment Lifts Platform
