Newest Sinotruck EOL OBD Diesel Truck Scanner Diagnostic Tool For HOWO A7/T7H/Sitrak/Hohan

The new model has two more functions than the old model:
1) Support wireless
2) Compatible with Weichai Diagsmart

NOTE:
1.Software download link : https://www.sinotruksfs.com/dn2/
2. If you buy our product , we we offer account for software login

Support Multi-Languages
Arabic , chinese, English, French, Portugues, Russian , Spainish

Weichai Diagsmart is a new generation engine diagnostic tool developed by Weichai. Supports various types of engines under Weichai, integrating data flashing, body diagnosis, and maintenance

It integrates vehicle function calibration and other functions, and can be operated on Windows, Android, iOS and other systems.

Technical parameters of SINOTRUK’s new version of EOL diagnostic tool support BT/WIFI:


Operating system:Linux
Processor: Dual processor Cortex-A7+Cortex-M7
Memory: 256MB
Storage: 8GB
Power supply: DC9V-36V

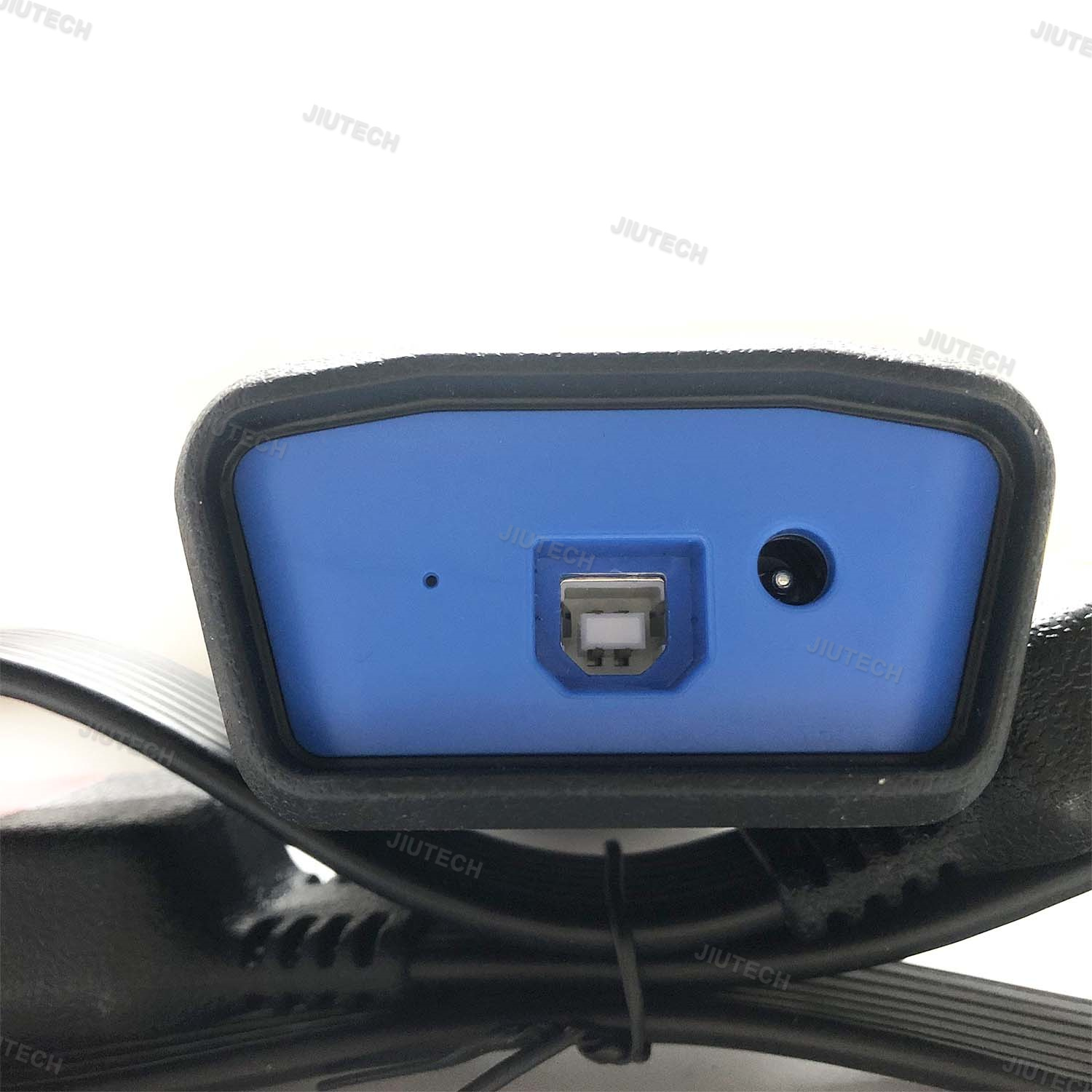

USB:Type B
USB2.0
Wi-Fi: 2.4G/5GHz dual band
Weight:310g
Working temperature:-10℃-50℃
Storage temperature:-20℃-70℃
Standard: Complies with J2534.RP1210 standard, supports CANBUS, CAN-FD, ISO 15765,DOIP, J1850, BTSJ1708 and other protocols

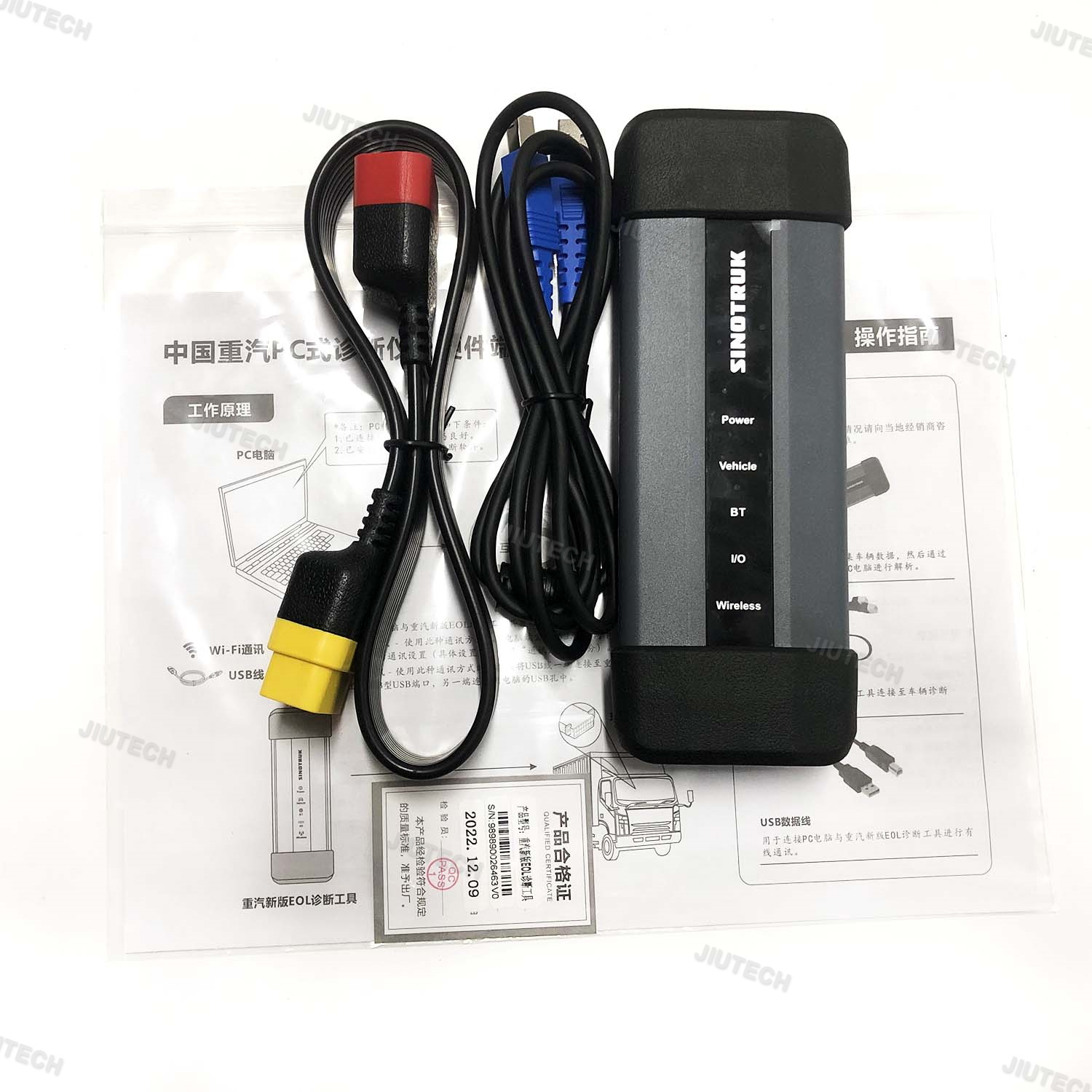

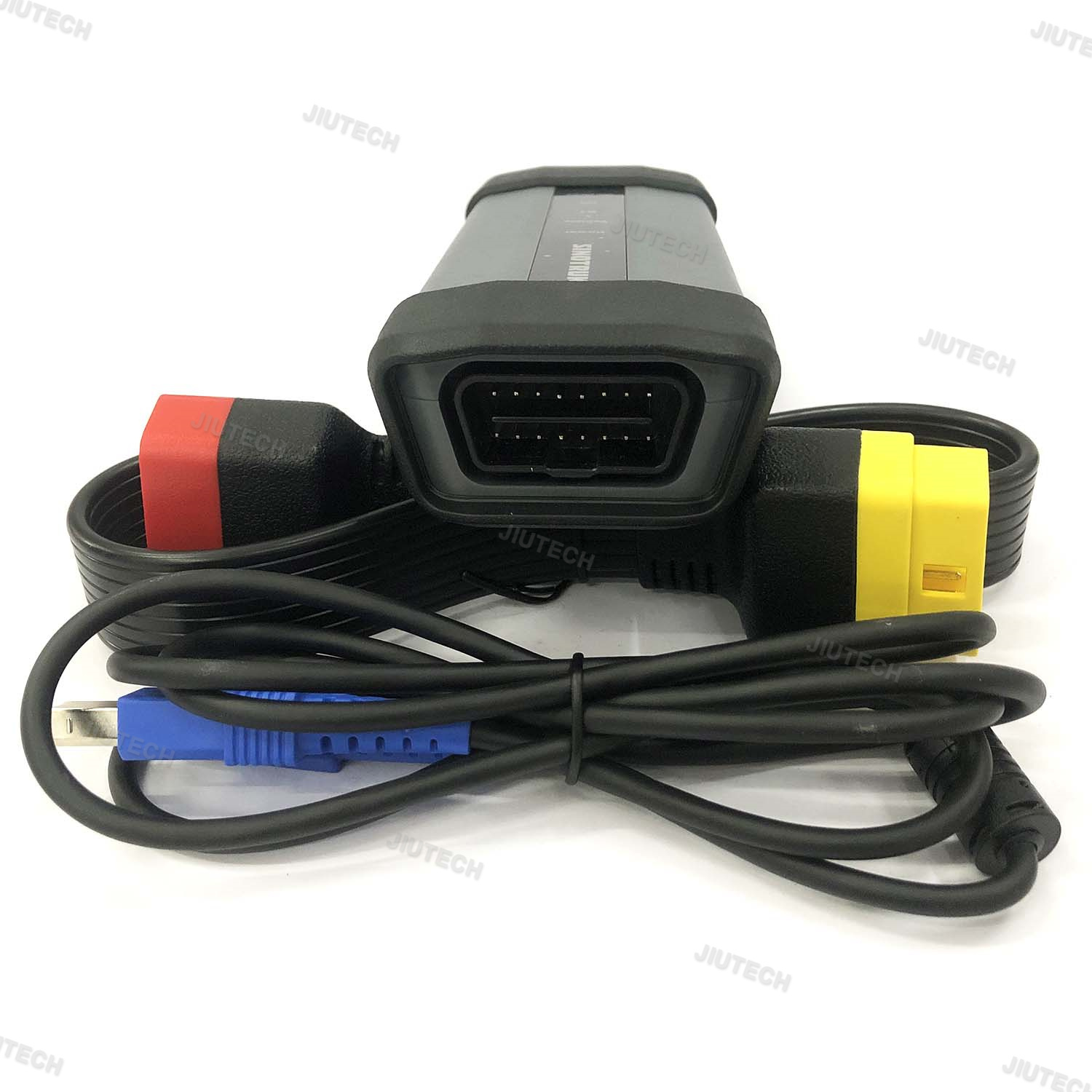

SINOTRUK Kit Package List:
1.HOWO interface *1

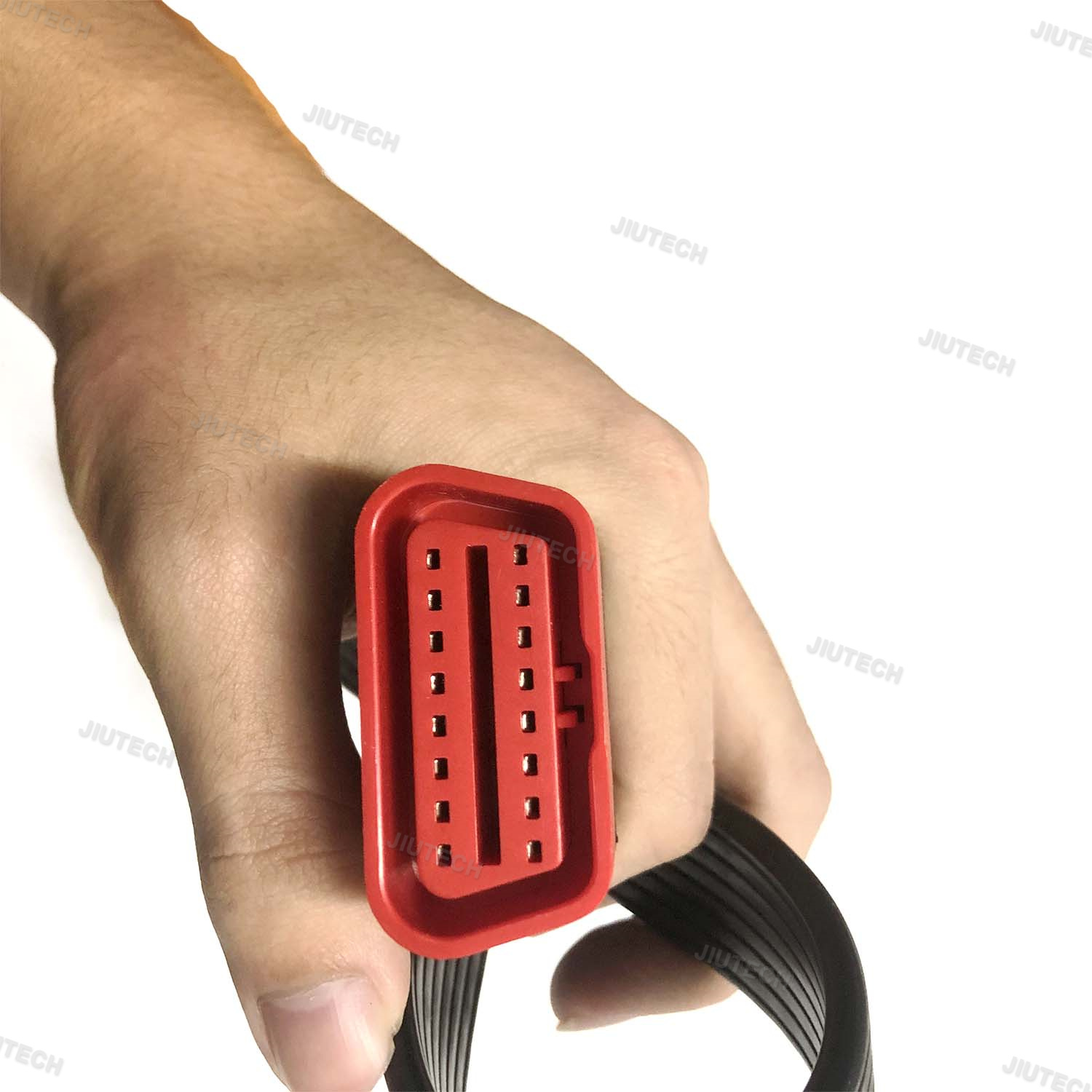

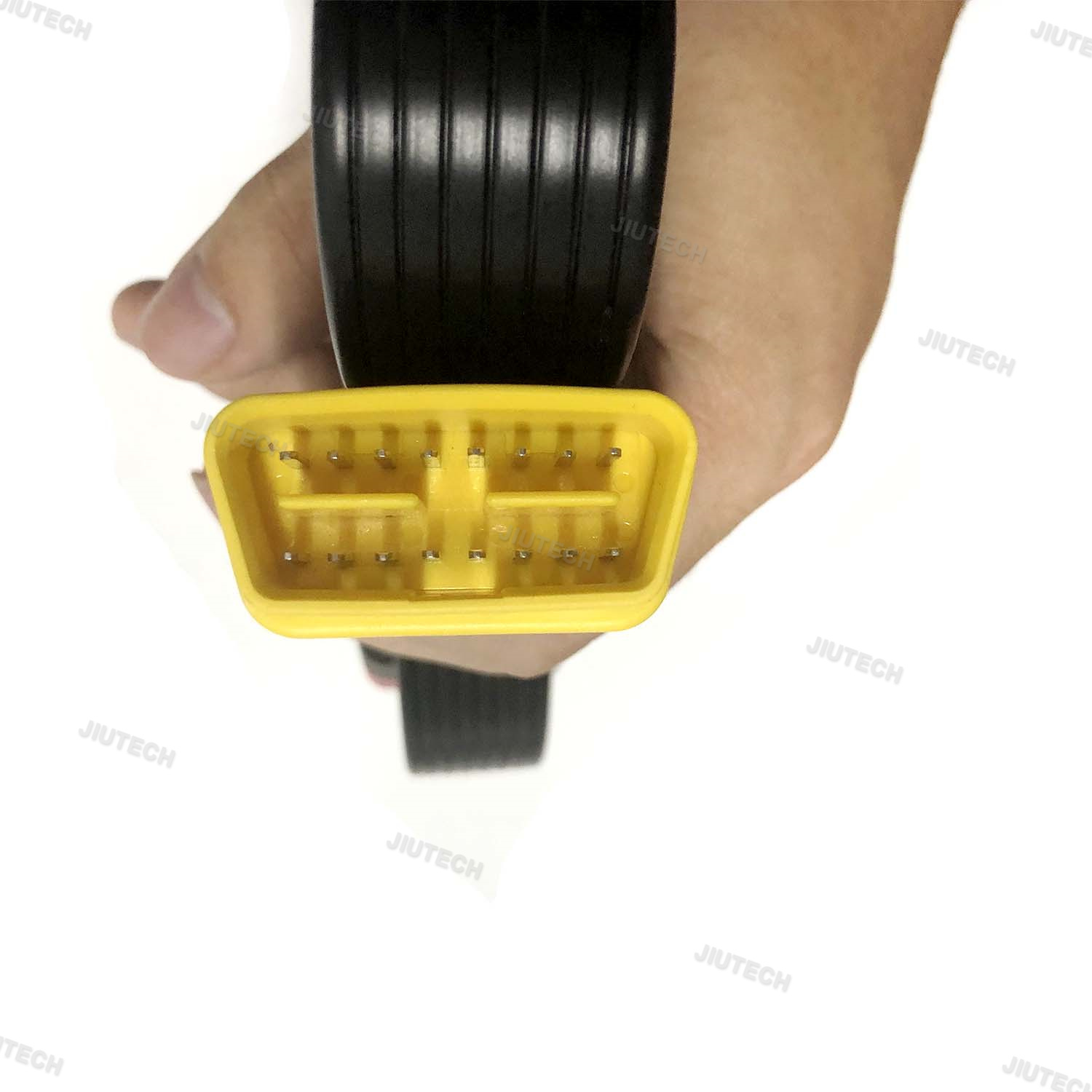

2.OBD Cable*1
3.USB Cable*1

User’s Guide:

For Sinotruk EOL OBD diagnostic kit DENSO common rail engine for WeiChai diagnostic tool
